Item Sales Info
Part Number: 6Y0WH / Vendor ID Number: 776 / Custom:

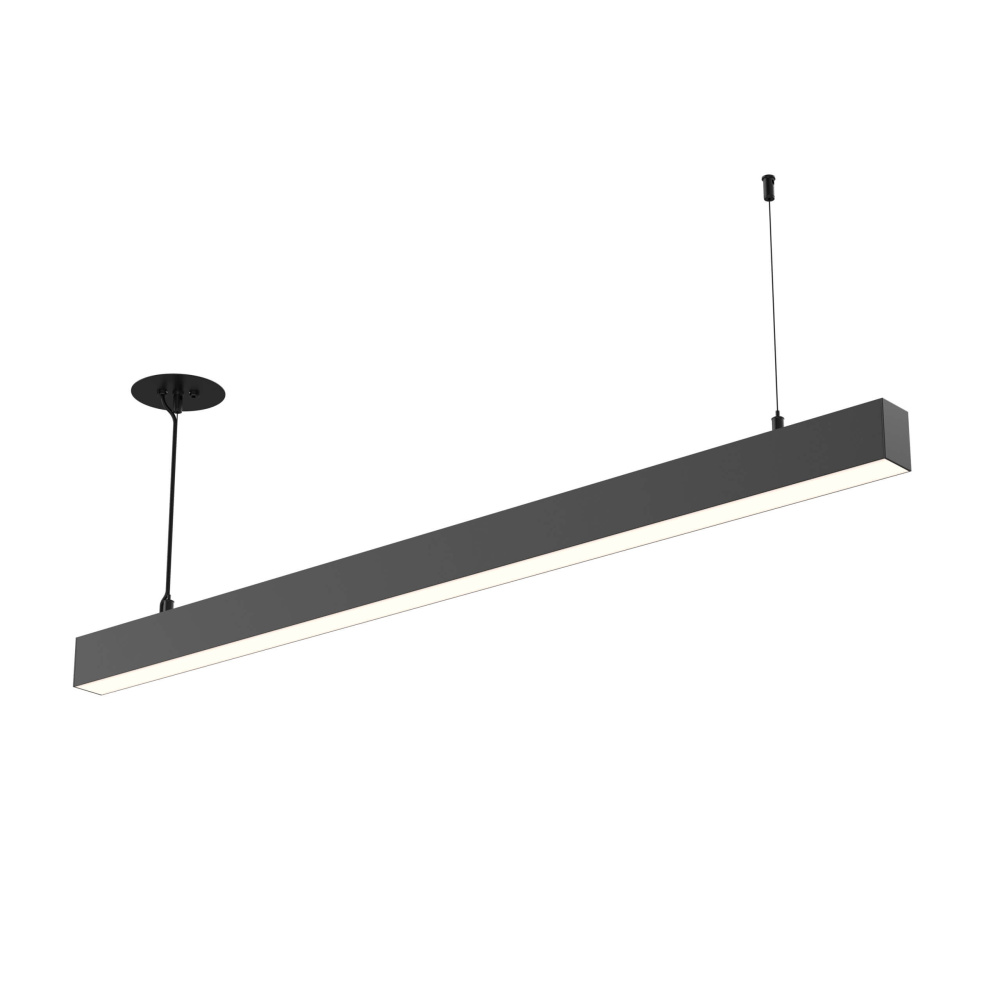

Pendant linear 48in 5CCT 120, Triac dimming

Pendant linear 48in 5CCT 120, Triac dimming

284
62
Pack Of: 1
Call for Availability
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 2.50"
Width: 1.88"
Product Overview
The Boulevard series, a linear modular light fixture perfect for general office, home, and shop illumination. Can be interconnected to produce striking visual effects.
Product Availability
Finish:
Additional Information
Dimming ranges from 10% to 100%
Multiple fixtures can be connected together
Switch-selectable CCT: 2700 K/ 3000 K/ 3500 K/ 4000 K/ 5000 K
Unique 20% up/ 80% down light output
Info & Guides
Click Here to View Instruction Sheet
Click Here to View Catalog Sheet
Technical Details
Details
Finish:
Black /vendors/vendorImages black.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Dry Rated
Category:
Ceiling
Subcategory:
Pendant
Finish:
Black /vendors/vendorImages black.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Family:
Boulevard
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
50000
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum
Ship Carton Height:
4.5
Ship Carton Length:
48.75
Ship Carton Width:
5.5
Ship Weight:
3
Warranty:
5 Years Limited
Weight:
2.5
Beam Angle:
106
Bulb CRI:
90
Cord Maximum Length:
120
Country of Origin:
China
Delivered Lumens:
2805
Dimmer Type:
Triac / ELV
Energy Star:
Yes
Indoor:
Yes
IP Rating:
IP20
Lens Material:
PC
Location Rating:
Dry Rated
Max Wattage:
40 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Safety Rating:
ETL Approved
Shipping Master Height:
10
Shipping Master Length:
49.5
Shipping Master Quantity:
1
Shipping Master Weight:
17
Shipping Master Width:
11.5
Title 24:
Yes
Wiring:
Hardwired
